標準価格 (ﾌﾚｰﾑ+ﾌｫｰｸ) ￥４０５．３００(税込み) |
||||||

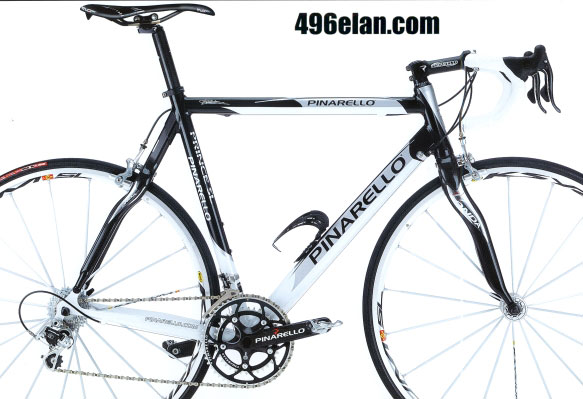

Tubing "Prince SL Pinarello", Tig welding. Fork "ONDA", carbon 1" 1/8 integral system. CRS carbon "ONDA". Available from 48 to 60 center center in 1 cm increments. Available in the slooping size 45.5. Weight of frame gr. 1.320. |
||||||
PR217-Black/White PR216-Blue/White PR215-Red/White |
||||||
|
||||||
| Technical Datas | ||||||||
| ﾌﾚｰﾑｻｲｽﾞ H c/c |
ﾄｯﾌﾟﾁｭｰﾌﾞ L c/c |
ｼｰﾄｱﾝｸﾞﾙ | ﾌﾛﾝﾄｾﾝﾀｰ S |
ﾘｱｾﾝﾀｰ AR |
BBﾊｲﾄ T |
ﾌｫｰｸｵﾌｾｯﾄ F |
 |
|
| α | α1 | |||||||
| 45.5 | 52,0 | 74,30 | 12,0 | 57,2 | 40,3 | 27,0 | 43 | |
| 48 | 51,5 | 74,30 | 12,8 | 57,2 | 40,3 | 27,0 | 43 | |
| 49 | 52 | 74,30 | 13,1 | 57,3 | 40,3 | 26,8 | 43 | |
| 50 | 52,5 | 74,30 | 13,4 | 57,5 | 40,3 | 26,5 | 43 | |
| 51 | 53,0 | 74 | 14,1 | 57,5 | 40,3 | 26,5 | 43 | |
| 52 | 53,7 | 74 | 14,3 | 58,5 | 40,5 | 26,5 | 43 | |
| 53 | 54,3 | 74 | 14,6 | 58,5 | 40,5 | 26,5 | 43 | |
| 54 | 54,7 | 73,45 | 15,4 | 58,3 | 40,5 | 26,5 | 43 | |
| 55 | 55 | 73,45 | 15,7 | 59,0 | 40,5 | 26,5 | 43 | |
| 56 | 56 | 73,30 | 15,4 | 59,2 | 40,5 | 26,5 | 43 | |
| 57 | 56,5 | 73,30 | 16,6 | 59,6 | 40,7 | 26,5 | 43 | |
| 58 | 57,5 | 72,3 | 17,4 | 60,1 | 40,7 | 26,8 | 43 | |
| 59 | 57,5 | 73 | 17,6 | 60,1 | 40,7 | 27,0 | 43 | |
| 60 | 58 | 73 | 18,1 | 61,0 | 40,7 | 27,3 | 43 | |
| 61 | 58,5 | 73 | 18,9 | 61,0 | 41 | 27,3 | 43 | |
| 62 | 59,5 | 72 | 19,2 | 61,0 | 41 | 27,3 | 43 | |
 |
||||||||
